Machine Carbine 9mm Sten Mk 2

Machine Carbine 9mm Sten Mk 2

Description

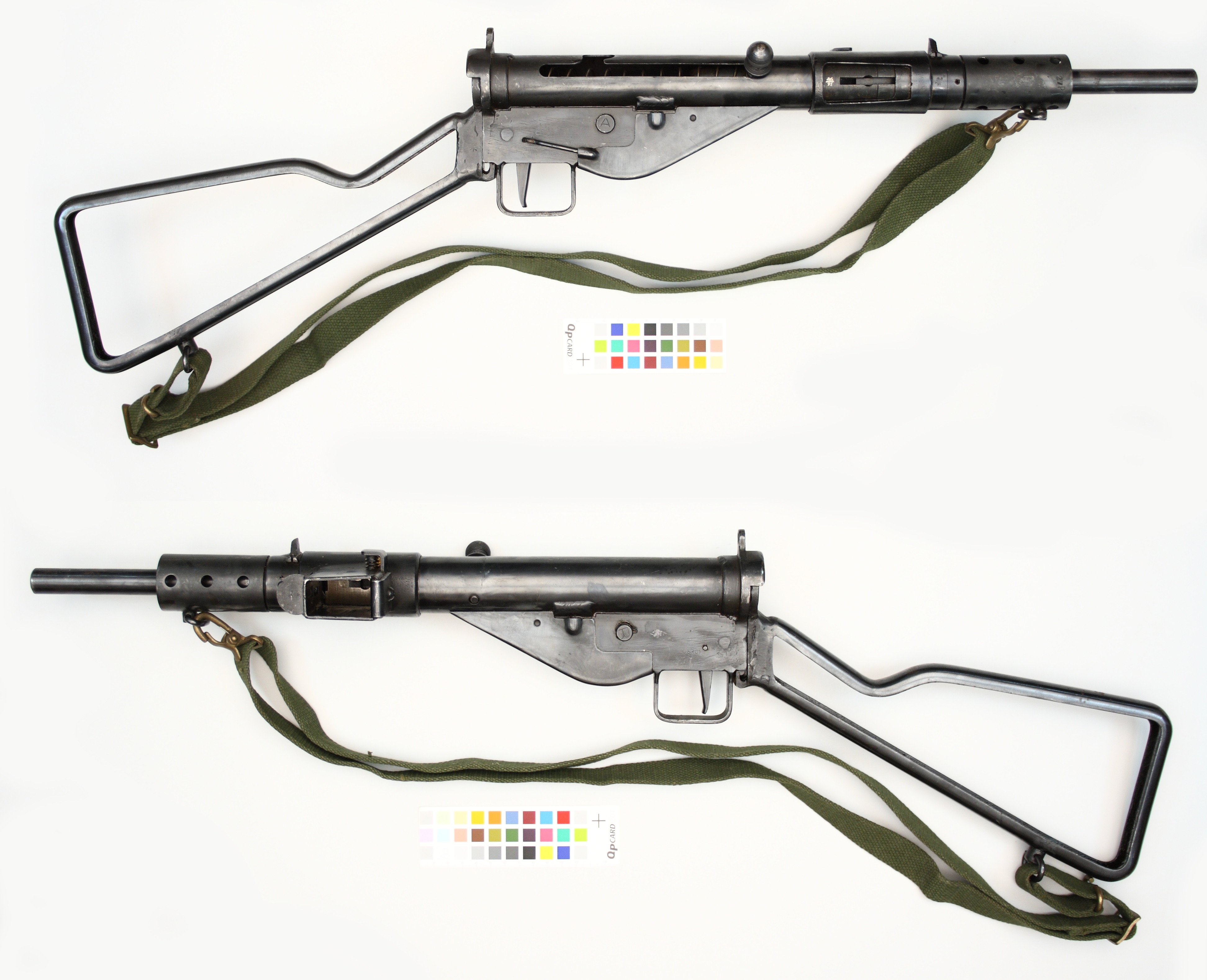

After Dunkirk the British army urgently needed a simple SMG that could be produced in large numbers, using the concept of the mass-produced German MP38/40, a design was produced in weeks - which satisfied the requirements. Named after its two designers, Shepherd and Turpin, and the Enfield Small Arms Company. the Sten well served the British army, various partisan groups throughout Europe and Asia. Made from steel tubes, sheet stamping, welds, pins and bolts it was the traditional gunsmith’s nightmare, but it worked. The Mk II Sten was the most widely used version. This example may be of Canadian manufacture

Marks and Stamps: (L side of trigger housing) C BROS (Top of mag housing) STEN.MKII (Under side of mag housing) Serial no E&Co (Underside of trigger housing) S106

Specifications

Accession Number: 158 Period of Use: 1941 - 1970
Type: Machine pistol/SMG War Zones: Second World War; Korea; Suez; Malaya; Rhodesia; Ireland; Cyprus; Arab-Israeli
Country of Origin: Type Date: 1941
Manufacturer: Serial Number: FM 28691
Manufacture Date: Calibre/Ammunition: 9mm Parabellum
Weight: 2950g Length Overall: 762mm
Cyclic Rate: 550rpm Length Barrel: 196mm
Deactivation Certificate Number: DA 6048
