Machine Carbine Model 49/57

Machine Carbine Model 49/57

Description

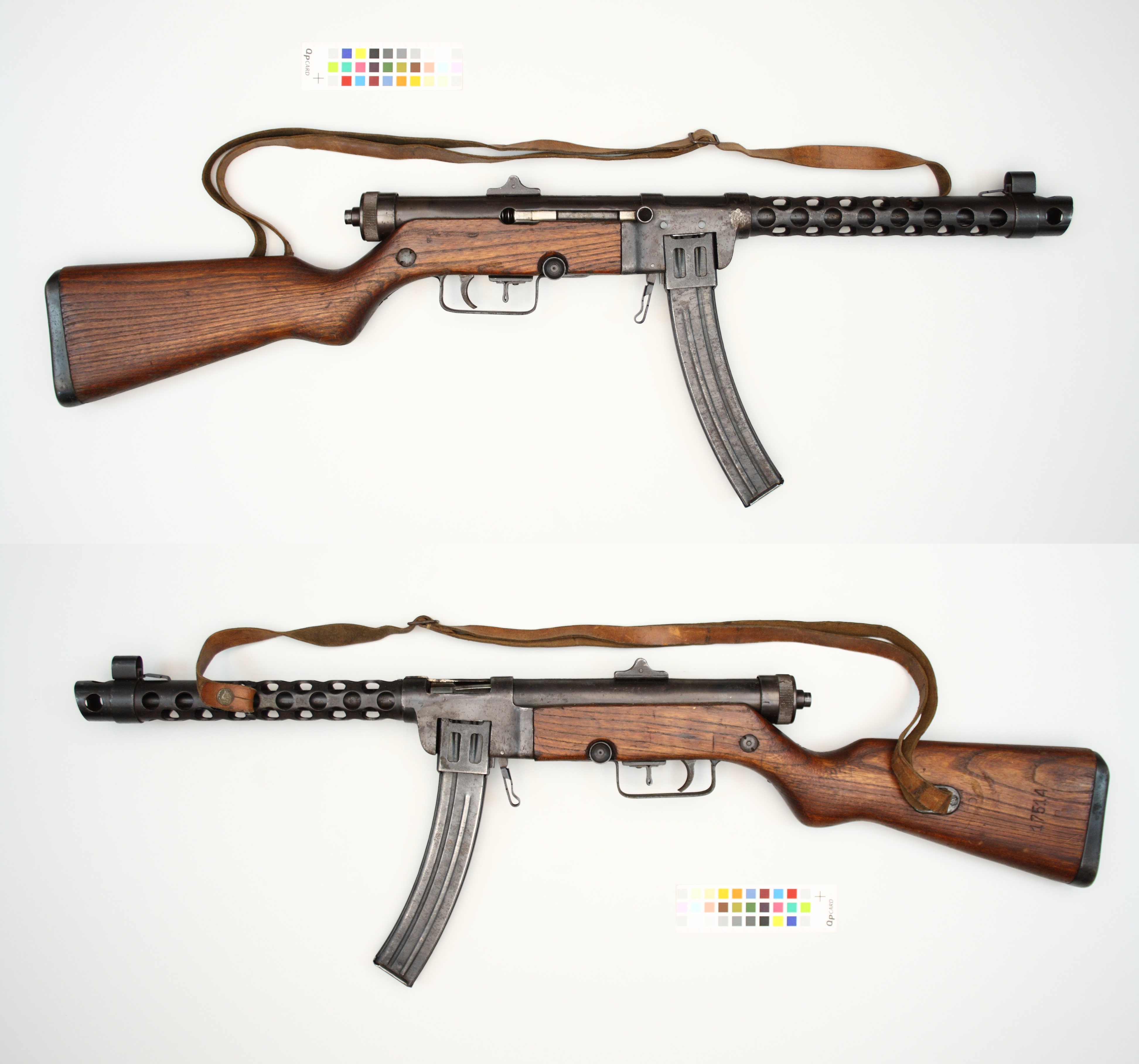

The Yugoslavian M49 (Model 1949) submachine gun at first glance appears to be a clone of Soviet PPSh-41 submachine gun. On close examination. however, there are more than a few differences between those two guns, with some features (most notably the bolt group and safety) being taken from Italian Beretta M38A submachine gun. It must be noted that M49 had apparently a relatively short service life, being replaced by the latter M56 submachine gun, which was more compact and of slightly more modern design The M59/57 designation refers to a later upgrade of the original 1949 weapon

Marks and Stamps: (Top of receiver) Trademark crest Cyrillic characters M49/57 (Side of receiver and L side of butt) Serial no (Under Mag seat) J 3647

Specifications

Accession Number: 173 Period of Use: 1948 - present
Type: Machine pistol/SMG War Zones: Balkans Wars
Country of Origin: Yugoslavia Type Date: 1949?
Manufacturer: Crvena Zastava, Kragujevac Serial Number: 17514
Manufacture Date: Unknown Calibre/Ammunition: 7.62x25
Weight: 3800g Length Overall: 847mm
Cyclic Rate: 750rpm Length Barrel: 267mm
Deactivation Certificate Number: DA 3505
